Rip Rap Plants

Our portable Rip Rap plant is a Heavy Duty coarse material separator that is designed to remove fines, scalp oversize rock and sort remaining stone by size. It is ruggedly constructed and expertly engineered to exceed the rigours of daily quarry life and provide reliable service under the most demanding conditions.


RIP-RAP-CUTAWAY.jpgMaterial Flow (Sizing Zones)

1. Hydraulic Side Dump Grizzly
Adjustable bars remove oversize material.

2. 4’ Section of Adjustable Step Deck Fingers
(2 - 2' sizing zones) 3” Spacing

3. 4' section with 1 1/4" QT adjustable bars

4.3/4" MS plate front discharge chute with flat bar stiffeners












 Side Discharge Chute

 Front Discharge Chute

 Cross Conveyor Hopper

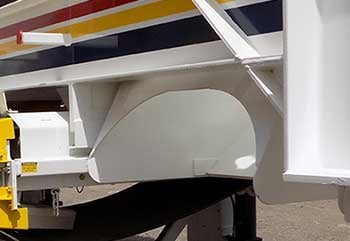

 side-discharge-chute

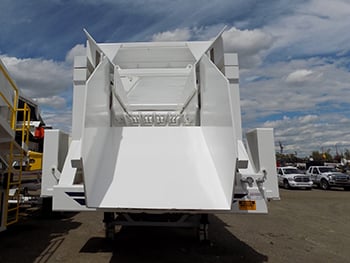

front-discharge-chute

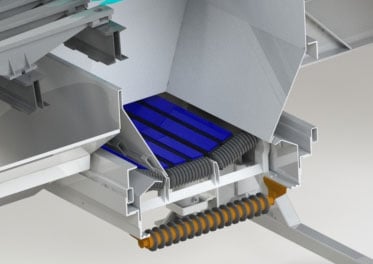

RIP-RAP-CUTAWAY-II

  • 3/4" MS plate side discharge chute
  • 3/4" MS plate front discharge chute with flat bar stiffeners
  • 3/4" MS plate construction
  • 4-foot impact bed

Specifications

chassisHeavy duty main frame construction

  • Six (6) blocking legs (two fold down)
  • 21" WF upright supports & 3/4” plate pads
  • 8" WF Hopper sub-frame
  • Spill deflector on rear of skid





ELwalking-beam-suspensionRUS Tandem axle walking beam suspension

  • Increased strength & stability
  • No springs to break
  • Easy installation (4 Bolts)







Hydraulic-LevelingFour Cylinder Hydraulic Levelling System

  • 4 - 50,000 lb 6x35 inch hydraulic cylinders w/ double acting
    control valves and pressure gauge
  • Flange mounted clamp on cylinders
  • 12 volt operation with 10 foot fixed jumper cables
  • Enables fast setup







54" X 24' Vibratory Grizzly Feeder

  • Adjustable Throw - adjust material flow
  • Low Maintenance
    • ◦No Oil
    • No Belts

10 Cubic Yard Hopper

  • 3/4" Plate construction with additional 3/4" plate leg support pads
  • 8” WF horizontal support beams with 3 – 16” WF upright support per side
  • Spill deflector on rear of skid

36” Side Discharge Conveyor

  • 4’ impact bed under receiving hopper

Hydraulic Side Dumping Grizzly

  • Dumps to 74° - cycle time 35 - 40 seconds
  • Heavy Duty 8" HSS frame
  • 3’ wing wall hopper extensions
  • Extra heavy duty 10" tri bar grizzly bars - set @ 24” adjustable spacing
  • Remote dump control with 100’ of control cable & controller
