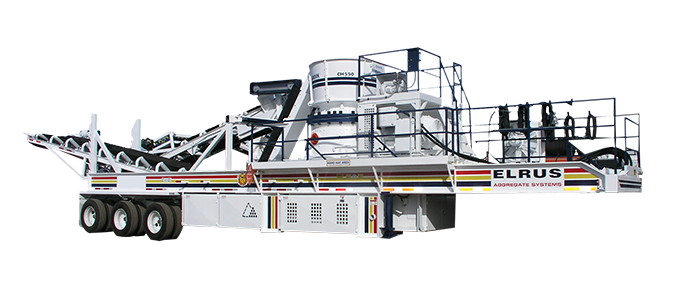

ELRUS | Sandvik CH550 (CH840i) Hydrocone Crusher

The new CH550 Compact Hydraulic Cone Crushers were developed by Sandvik to provide high quality aggregate production in a cost efficient manner with an emphasis on increased flexibility, safety, ease of maintenance and overall lower cost of ownership.

ch550

Sandvik CH550 Capacities and Configurations

Capacities   Chamber Configuration
Capacity 95-470 t.p.h.   F = Fine MC = Medium Coarse
CSS Range 6-44 mm (.2" - 1.7")   MF = Medium Fine C = Coarse
Max Feed Size

≤215 mm (≤8,5 in)

  M = Medium CX = Coarse Extra

 Features and Benefits

  • High capacity in relation to size
  • Comes with  (ASRi) fitted as standard
  • The Control System automatically adjusts to variations in feed conditions, pressure peaks and wear
  • A dump valve ensures quick, safe tramp relief if something uncrushable gets into the crusher
  • The wear parts have been adapted, ensuring a longer lifetime per ton produced
  • Does not use plastic backing compound to attach the manganese
  • Reduced noise emissions
  • Maintenance friendly with easily accessible spare parts

Download the Sandvik CH550 Brochure


Sandvik CH550 450 HP Cone Crusher

ELRUS Chassis Specifications

  • 21” WF Strapped and cambered main frame with ¾” x 6” flat bar
  • ELRUS Tri-axle axle walking beam suspension
  • Four (4) blocking legs
  • Twelve (12) – 11:00 R x 22.5 Budd wheels and radial tires
  • Airbrakes, running lights, and mud flaps
  • Floating subframe & motor mount for cone c/w 6 rubber compression mounts
  • Platform, stairway and guard for cone drive
  • Fold out guards between cone legs for under conveyor protection
  • Fixed walkway on both sides of cone and across front with hand rails and kick plate
  • Access ladder to chassis
  • Clamp-on cone feed hopper
  • Plant sandblasted, primed, and painted
  • Drive and belt guarding
  • Return roller guards provided on rollers accessible from normal working surfaces
  • Cable wraps mounted on hand rails
  • Air to Oil cooler c/w temperature control shutters
  • Positive pressure air pump mounted on front of Chassis
  • Bottle jack and jack stand

Cone Crusher:

  • Sandvik CH550 Hydrocone Crusher
  • ASRi 2.0 computer automated cone control
  • 450 hp drive motor

Optional Features:

  • Hydraulic raise and lower on return conveyor
  • Cone feed raise and lower on discharge end



Image Gallery (click to enlarge)

ELRUS Chassis with Sandvik CH550 Cone Crusher
ELRUS Chassis with Sandvik CH550 Cone Crusher
CH550 Cone Crusher, Platform, Handrails and Floating Motor Mount
CH550 Cone Crusher on ELRUS Chassis
ELRUS Chassis with Sandvik CH550 Cone Crusher
CH550 Cone Crusher, Platform, Handrails and Floating Motor Mount
CH550 Cone Crusher on ELRUS Chassis
